unravel::prefab_component Struct Reference

Component that holds a reference to a prefab asset and tracks property overrides. More...

#include <prefab_component.h>

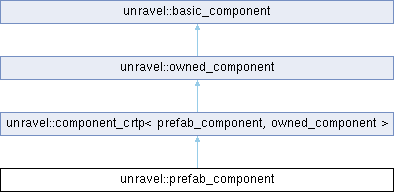

Inheritance diagram for unravel::prefab_component:

Public Member Functions
void	clear_overrides ()
	Clear all overrides (for applying all changes to prefab)
void	add_override (const hpp::uuid &entity_uuid, const std::string &component_path)
	Add a property override.
void	add_override (const hpp::uuid &entity_uuid, const std::string &component_path, const std::string &pretty_component_path)
	Add a property override with pretty path.
auto	has_override (const hpp::uuid &entity_uuid, const std::string &component_path) const -> bool
	Check if a property is overridden.
void	remove_override (const hpp::uuid &entity_uuid, const std::string &component_path)
	Remove a property override.
void	remove_entity (const hpp::uuid &entity_uuid)
	Remove an entity from the prefab.
auto	get_all_overrides () const -> const std::set< prefab_property_ override _data > &
	Get all overrides.
auto	has_serialization_override (const std::string &serialization_path) const -> bool
	Check if a serialization path has an override (for backward compatibility)
Public Member Functions inherited from unravel::owned_component
auto	operator= (const owned_component &other) -> owned_component &=default
void	set_owner (entt::handle owner)
	Sets the owner of the component.
auto	get_owner () const noexcept -> entt::const_handle
	Gets the owner of the component.
auto	get_owner () noexcept -> entt::handle
	Gets the owner of the component.
Public Member Functions inherited from unravel::basic_component
void	touch ()
	Marks the component as 'touched'.

Public Attributes
asset_handle< prefab >	source
	Handle to the prefab asset.
std::set< prefab_property_override_data >	property_overrides
	Storage of property overrides Each override is identified by entity UUID + component path This allows entity renaming without invalidating overrides.
std::set< hpp::uuid >	removed_entities
bool	changed = false
Public Attributes inherited from unravel::basic_component
bool	eto {}
	Disable empty type optimizations.

Static Public Attributes
static constexpr bool	in_place_delete = false
Static Public Attributes inherited from unravel::component_crtp< prefab_component, owned_component >
static constexpr bool	in_place_delete
	Indicates if the component can be deleted in place.

Additional Inherited Members
Public Types inherited from unravel::component_crtp< prefab_component, owned_component >
using	base
Static Public Member Functions inherited from unravel::owned_component
template<typename T >
static void	on_create_component (entt::registry &r, entt::entity e)
template<typename T >
static void	on_destroy_component (entt::registry &r, entt::entity e)

Detailed Description

Component that holds a reference to a prefab asset and tracks property overrides.

Definition at line 36 of file prefab_component.h.

Member Function Documentation

add_override() [1/2]

void unravel::prefab_component::add_override	(	const hpp::uuid &	entity_uuid,
		const std::string &	component_path )

Add a property override.

Parameters

entity_uuid	The UUID of the entity being overridden
component_path	The component type + property path

Definition at line 42 of file prefab_component.cpp.

add_override() [2/2]

void unravel::prefab_component::add_override	(	const hpp::uuid &	entity_uuid,
		const std::string &	component_path,
		const std::string &	pretty_component_path )

Add a property override with pretty path.

Parameters

entity_uuid	The UUID of the entity being overridden
component_path	The component type + property path
pretty_component_path	The human-readable component path

Definition at line 47 of file prefab_component.cpp.

clear_overrides()

void unravel::prefab_component::clear_overrides

(

)

Clear all overrides (for applying all changes to prefab)

Definition at line 36 of file prefab_component.cpp.

get_all_overrides()

auto unravel::prefab_component::get_all_overrides ( ) const & -> const std::set<prefab_property_

override

Get all overrides.

Returns

Set of all property overrides

Definition at line 120 of file prefab_component.cpp.

has_override()

auto unravel::prefab_component::has_override	(	const hpp::uuid &	entity_uuid,
		const std::string &	component_path ) const -> bool

Check if a property is overridden.

Parameters

entity_uuid	The UUID of the entity
component_path	The component type + property path

Returns

True if the property is overridden

Definition at line 95 of file prefab_component.cpp.

has_serialization_override()

auto unravel::prefab_component::has_serialization_override

(

const std::string &

serialization_path

)

const -> bool

Check if a serialization path has an override (for backward compatibility)

Parameters

serialization_path

The path in format "entities/uuid/components/component/path"

Returns

True if the path is overridden

Definition at line 125 of file prefab_component.cpp.

remove_entity()

void unravel::prefab_component::remove_entity

(

const hpp::uuid &

entity_uuid

)

Remove an entity from the prefab.

Parameters

entity_uuid

The UUID of the entity

Definition at line 105 of file prefab_component.cpp.

remove_override()

void unravel::prefab_component::remove_override	(	const hpp::uuid &	entity_uuid,
		const std::string &	component_path )

Remove a property override.

Parameters

entity_uuid	The UUID of the entity
component_path	The component type + property path

Definition at line 100 of file prefab_component.cpp.

Member Data Documentation

changed

bool unravel::prefab_component::changed = false

Definition at line 54 of file prefab_component.h.

in_place_delete

bool unravel::prefab_component::in_place_delete = false

staticconstexpr

Definition at line 38 of file prefab_component.h.

property_overrides

std::set<prefab_property_override_data> unravel::prefab_component::property_overrides

Storage of property overrides Each override is identified by entity UUID + component path This allows entity renaming without invalidating overrides.

Definition at line 50 of file prefab_component.h.

removed_entities

std::set<hpp::uuid> unravel::prefab_component::removed_entities

Definition at line 52 of file prefab_component.h.

source

asset_handle<prefab> unravel::prefab_component::source

Handle to the prefab asset.

Definition at line 43 of file prefab_component.h.

---

The documentation for this struct was generated from the following files:

• C:/Workspace/github/UnravelEngine/UnravelEngine/engine/engine/ecs/components/prefab_component.h
• C:/Workspace/github/UnravelEngine/UnravelEngine/engine/engine/ecs/components/prefab_component.cpp
